Product Model

ZB5AD5TQ

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25192

In Stock
Last updated: 2025/4/25
View Specifications

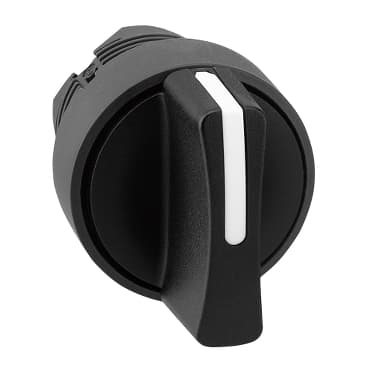

schneider ZB5AD5TQ

Selling Points

  • 1Built with high-quality dark gray plastic for long-lasting performance.
  • 2Designed to withstand harsh environments with an IP66 rating.
  • 3Offers reliable operation with three distinct positions.
  • 4Features prominent black actuators for simple mounting and operation.
  • 5Functions effectively from -40°C to 70°C, making it suitable for various industrial settings.
Product Details
ZB5AD5TQ
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for selector switch
Device short name
ZB5
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
10
Shape of signaling unit head
Round
Type of operator
To centre spring return
Operator profile
Black standard handle
Operator position information
3 positions +/- 45°
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.8 in (46 mm)
Mechanical durability
1000000 cycles
Station name
XALD 1...5 cut-outs
Electrical composition code
C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK06 conforming to IEC 50102
Standards
CSA C22.2 No 14<br />IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />JIS C8201-1
Product Certifications
DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
