Product Model

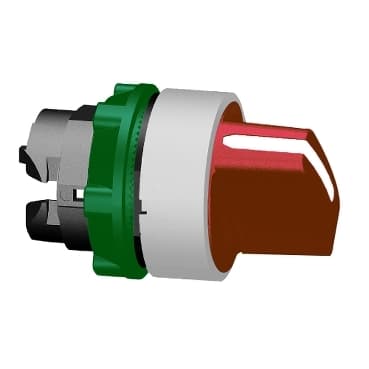

ZB5AD704C1
Selling Points
- 1High Durability: Withstands 1,000,000 cycles, ensuring long-lasting performance in demanding environments.
- 2Precise Positioning: Offers 3 positions with +/- 45° operator position information for accurate control.
- 3Compact Design: Measures 46 mm in diameter and 29 mm in height, ideal for space-constrained installations.
- 4Easy Installation: Compatible with XALD 1...5 and XALK 2...5 cut-outs, simplifying integration into various systems.
- 5Enhanced Safety: Red standard handle provides clear visibility and easy operation, enhancing user safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
Device short name | ZB5 | Bezel material | Plastic colour plated white |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | Left to centre spring return | Operator profile | Red standard handle |
Operator position information | 3 positions +/- 45° | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.8 in (46 mm) |
Net Weight | 0.037 lb(US) (0.017 kg) | Mechanical durability | 1000000 cycles |
Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP67 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK06 conforming to IEC 50102 | Product Certifications | DNV<br />GL<br />BV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
