Product Model

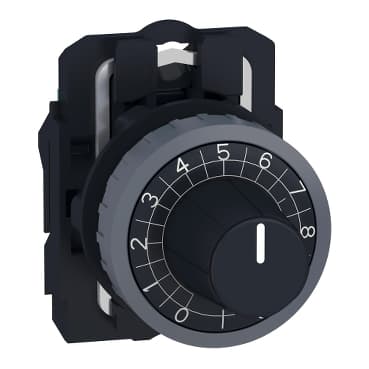

ZB5AD912C0
Selling Points
- 1Crafted from durable black plastic for long-lasting performance.
- 2Quick and simple installation with various connection options.
- 3Built to withstand harsh environments, ensuring reliability in demanding applications.
- 4Compatible with screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 5Made with recycled cardboard to reduce carbon footprint.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head + mounting base for potentiometer |
Device short name | ZB5 | Bezel material | Plastic colour plated grey |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Product Compatibility | For use with Ø 6 mm shaft | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Operator profile | knurled knob, with white) |
Net Weight | 0.071 lb(US) (0.032 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | GL<br />LROS (Lloyds register of shipping)<br />UL Listed<br />CSA<br />DNV<br />BV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
