Product Model

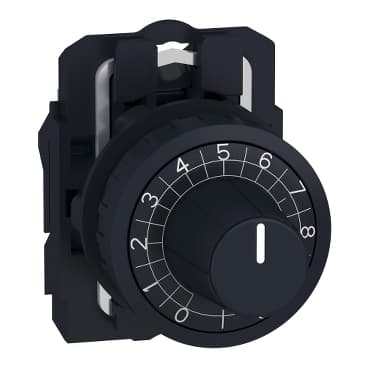

ZB5AD922
Selling Points
- 1Features a knurled knob head for easy control.
- 2Impact, dust, water, and vibration resistant with IP65 rating.
- 3Fits standard 22mm cutouts and supports various connection types.
- 4Operates from -40°C to 70°C, suitable for diverse environments.
- 5Easy to install and disassemble for quick adjustments and replacements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head + mounting base for potentiometer |
Device short name | ZB5 | Bezel material | Dark grey plastic |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Product Compatibility | For use with Ø 6.35 mm shaft | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Operator profile | knurled knob, with white) |
Net Weight | 0.071 lb(US) (0.032 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | IEC 60947-5-4<br />IEC 60947-5-5<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
