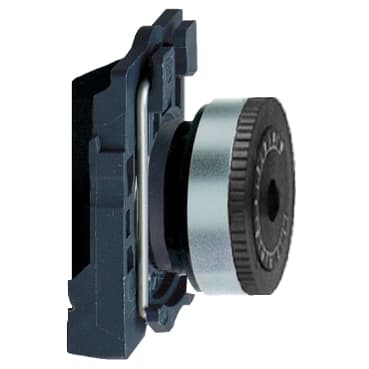

Schneider Electric ZB5AD922 Potentiometer Head for Automation Control

Selling Points

1Robust Design: Impact, dust, water, and vibration resistant with IP65 rating.
2Versatile Temperature Range: Operates from -40°C to 70°C, suitable for various industrial applications.
3Easy Installation: Designed for simple installation and replacement on compatible potentiometers.
4Ergonomic Interface: Features a knurled knob head for ergonomic control of machines.
5Compatibility: Fits in a standard 22mm cutout, ensuring compatibility with pre-existing machinery.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XB5	Product or Component Type	Head + mounting base for potentiometer
Device short name	ZB5	Bezel material	Dark grey plastic
Mounting diameter	0.9 in (22 mm)	Head type	Standard
Product Compatibility	For use with Ø 6.35 mm shaft	Sale per indivisible quantity	100
Shape of signaling unit head	Round	Operator profile	knurled knob, with white)
Net Weight	0.071 lb(US) (0.032 kg)	Resistance to high pressure washer	1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Protective treatment	TH	Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation	-40…158 °F (-40…70 °C)	Electrical shock protection class	Class II IEC 60536
IP degree of protection	IP66 IEC 60529	NEMA degree of protection	NEMA 13<br />NEMA 4X
IK degree of protection	IK03 conforming to IEC 50102	Standards	EN/IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications	CSA<br />GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed	Vibration resistance	5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
