schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AFDD

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25250

In Stock
Last updated: 2025/4/25
View Specifications

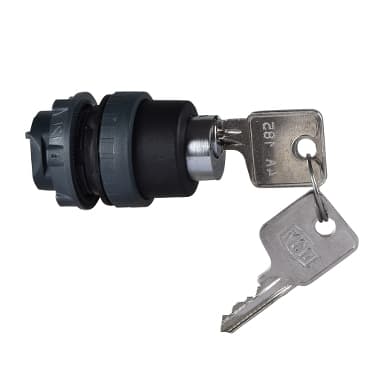

schneider ZB5AFDD

Selling Points

  • 1Efficient Installation: Simplify installation with clearly identified and aligned holes on legend panels, saving up to 75% of installation time.
  • 2Robust Performance: Delivering extremely robust performance in severe environments with sealing effectiveness rated up to IP66, IP67, and high impact resistance.
  • 3Configurable Display: Enhance machine function with a configurable display for simple data visualization and small displays in a diameter 22 mm hole for quicker mounting.
  • 4Technical Specifications: Equipped with USB and RJ45 ports for easy PC or USB connection, timer for safe time settings, and 3-phase pilot lights in a single 30 mm diameter hole.
  • 5Operational Flexibility: Compatible with various accessories including protective covers, legends, and legend holders, pushbutton caps, boots, and bulbs for comprehensive control solutions.
Product Details
ZB5AFDD
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB5
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
turn to release
Operator profile
key switch
Type of Keylock
Dom 4A185
Key withdrawal position
Both positions
Locking position
Actuated position
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
2.4 in (62 mm)
Net Weight
0.11 lb(US) (0.05 kg)
Mechanical durability
500000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
C12 6 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C13 6 single and double front mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications
GL<br />BV<br />LROS (Lloyds register of shipping)<br />CSA<br />DNV<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
