schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AG2DC1

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25286

In Stock
Last updated: 2025/4/26
View Specifications

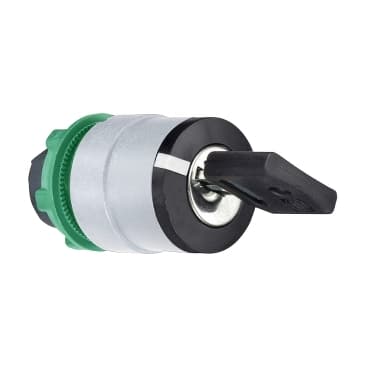

schneider ZB5AG2DC1

Selling Points

  • 1Designed to withstand harsh chemical environments, ensuring reliability in industrial settings.
  • 2Easy to install with a clip-together component system, reducing setup time and effort.
  • 3Round, plastic construction with various connection systems (screw clamp, faston connector, spring terminal, or PCB) for flexibility.
  • 4Operating temperature range from -40°C to +70°C, suitable for both indoor and outdoor applications.
  • 5Shock protection level up to IK06 and high vibration resistance with shakeproof connection screws.
Product Details
ZB5AG2DC1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for key selector switch
Device short name
ZB5
Bezel material
Plastic colour plated white
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
stay put
Operator profile
Black key switch
Operator position information
2 positions 90°
Type of Keylock
Dom 8D1
Key withdrawal position
Left
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
2.8 in (72 mm)
Net Weight
0.126 lb(US) (0.057 kg)
Mechanical durability
1000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C3 6 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C15 1 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK06 conforming to IEC 50102
Standards
EN/IEC 60947-1<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications
GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
