Product Model

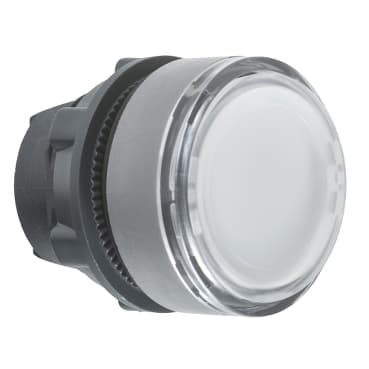

ZB5AH013C0
Selling Points
- 1Clearly visible at a distance due to its illuminated clear color and flush element.
- 2Resistant to impact, dust, water, and vibration, making it ideal for harsh environments.
- 3Snap-fit assembly for quick and simple installation on compatible push-button units and contact blocks.
- 4Designed to perform up to 10 million operations, ensuring robust performance even in demanding conditions.
- 5Compatible with various control systems, offering a versatile interface for machine control applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Product Compatibility | Universal LED | Device short name | ZB5 |
Bezel material | Plastic colour plated grey | Mounting diameter | 0.9 in (22 mm) |
Head type | Standard | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | push-push |
Operator profile | White flush, unmarked | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (30 mm) |
Net Weight | 0.037 lb(US) (0.017 kg) | Mechanical durability | 5000000 cycles |
Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK05 conforming to IEC 50102 | Standards | UL 508<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
