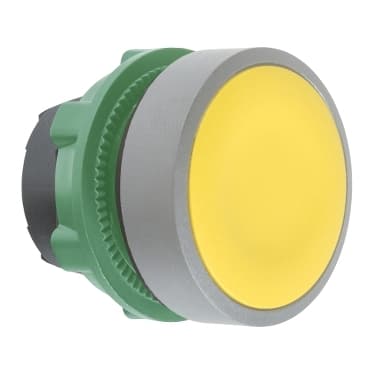

schneider ZB5AH05C0

Selling Points

  • 1High Robustness: Designed to withstand 2 million mechanical cycles.
  • 2Easy Installation: Modular Harmony series with 22mm mounting dimension.
  • 3IP66 Protection: Resistant to dust and water, ensuring reliable operation.
  • 4Wide Temperature Range: Operates from -40°C to +70°C.
  • 5Compliant with Industry Standards: Meets EN/IEC 60947-5-1, CSA C22.2 No 14, and UL 508.
Product Details
ZB5AH05C0
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB5
Bezel material
Plastic colour plated grey
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Yellow flush, unmarked
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.1 in (28 mm)
Net Weight
0.040 lb(US) (0.018 kg)
Mechanical durability
2000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C9 3 single front mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
UL 508<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-5-1<br />IEC 60947-5-4<br />JIS C8201-1
Product Certifications
DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
