schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AH083

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25456

In Stock
Last updated: 2025/4/26
View Specifications

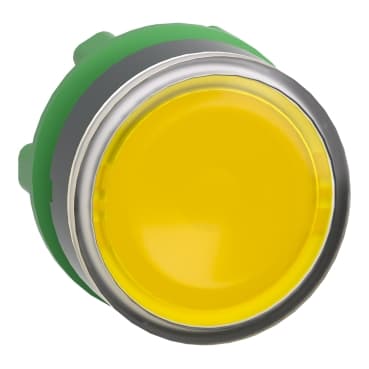

schneider ZB5AH083

Selling Points

  • 1Robust IP66 Rating: Durable and water-resistant, suitable for harsh environments.
  • 2Yellow Illumination: Bright and clear yellow illumination for easy visibility.
  • 322mm Standard Mounting: Convenient mounting in a standard 22mm hole.
  • 4Flat Button Shape: Ergonomic flat button design for smooth operation.
  • 5Universal LED Compatibility: Compatible with various universal LED lights for customizable lighting options.
Product Details
ZB5AH083
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Product Compatibility
Universal LED
Device short name
ZB5
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Yellow flush, unmarked
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.037 lb(US) (0.017 kg)
Mechanical durability
500000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
Standards
IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-5<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1
Product Certifications
DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
