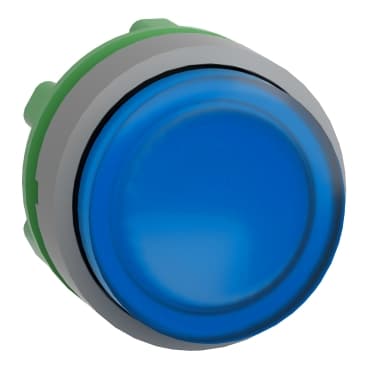

ZB5AH63C0

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25568

In Stock
Last updated: 2025/4/27
View Specifications
schneider ZB5AH63C0

Selling Points

  • 1High Robustness: Designed to withstand harsh environments with IP66 and IK05 protection.
  • 2Easy Installation: Quick and simple one-hand assembly with independent front element.
  • 3Comprehensive Certifications: Meets IEC/EN 60947-5-1, IEC 60529, UL 508, CSA C22.2 No. 14, and more.
  • 4Wide Operating Range: Operates safely from -25°C to 70°C and stores from -40°C to 70°C.
  • 5Durable Design: Tested for 5 million cycles without loss of capacity, ensuring long-lasting performance.
Product Details
ZB5AH63C0
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Product Compatibility
Universal LED
Device short name
ZB5
Bezel material
Plastic colour plated grey
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Blue projecting, unmarked
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.037 lb(US) (0.017 kg)
Mechanical durability
5000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
Standards
CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-5<br />IEC 60947-5-4<br />IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1
Product Certifications
DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
