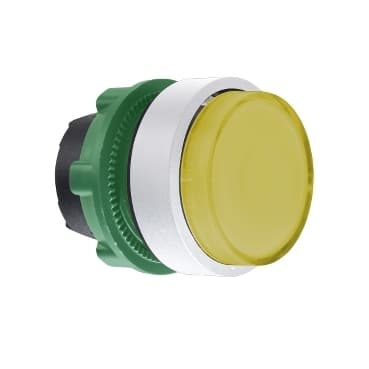

ZB5AH83C1

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25574

In Stock
Last updated: 2025/4/27
View Specifications
schneider ZB5AH83C1

Selling Points

  • 1Built to withstand harsh industrial environments with high chemical robustness and shock protection.
  • 2Suitable for a wide range of applications, including control and signaling units, pushbuttons, and switches.
  • 3Includes various accessories such as protective covers, legends, and legend holders for enhanced functionality.
  • 4Provides protection against solid foreign objects, dust, and water ingress, ensuring reliable operation.
  • 5Meets international standards including CE marking, UL, CSA, CCC, EAC, JIS, and NEMA approvals.
Product Details
ZB5AH83C1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB5
Bezel material
Plastic colour plated white
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Yellow projecting, unmarked
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.037 lb(US) (0.017 kg)
Mechanical durability
500000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
Standards
EN/IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
CSA<br />UL Listed<br />GL<br />LROS (Lloyds register of shipping)<br />BV<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
