Product Model

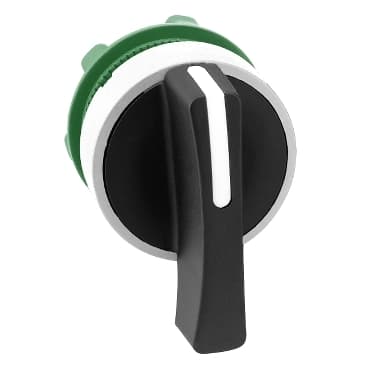

ZB5AJ2C1
Selling Points
- 1Built to withstand harsh environments with a robust construction.
- 2Suitable for various industrial and commercial settings.
- 3Simple mounting process with standard 22mm mounting hole diameter.
- 4Operates between -40°C to 70°C, ensuring performance in diverse conditions.
- 5Available for worldwide delivery through trusted shipping partners like UPS, DHL, and FedEx.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
Device short name | ZB5 | Bezel material | Plastic colour plated white |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | stay put | Operator profile | Black long handle |
Operator additional information | Non padlockable | Operator position information | 2 positions 90° |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.5 in (38 mm) |
CAD overall depth | 1.8 in (46 mm) | Net Weight | 0.037 lb(US) (0.017 kg) |
Mechanical durability | 1000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP67 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK06 conforming to IEC 50102 |
Product Certifications | LROS (Lloyds register of shipping)<br />GL<br />CSA<br />BV<br />DNV<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
