schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AK1563C1

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25512

In Stock
Last updated: 2025/4/26
View Specifications

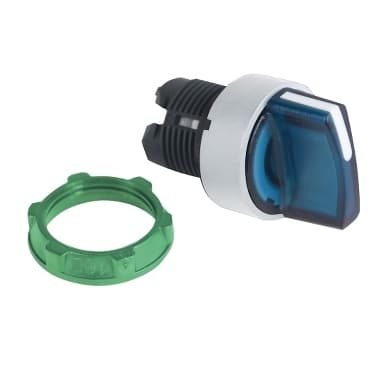

schneider ZB5AK1563C1

Selling Points

  • 1Universal Compatibility: Compatible with universal LED devices.
  • 2Illuminated Design: Features an illuminated selector switch for enhanced visibility.
  • 3Spring Return Mechanism: Equipped with a spring return mechanism for smooth operation.
  • 4Durable Construction: Designed for 500,000 cycles of mechanical durability.
  • 5Compact Size: Measures 22mm in diameter, perfect for panel mounting.
Product Details
ZB5AK1563C1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated selector switch
Product Compatibility
Integral LED
Device short name
ZB5
Bezel material
Plastic colour plated white
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
To centre spring return
Operator profile
Blue standard handle
Operator position information
3 positions +/- 45°
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.7 in (43 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Mechanical durability
500000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED<br />M4 4 single and double front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK04 conforming to IEC 50102
Standards
EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1
Product Certifications
UL Listed<br />LROS (Lloyds register of shipping)<br />DNV<br />BV<br />GL<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
