ZB5AL5C0

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25614

In Stock
Last updated: 2025/4/27
View Specifications

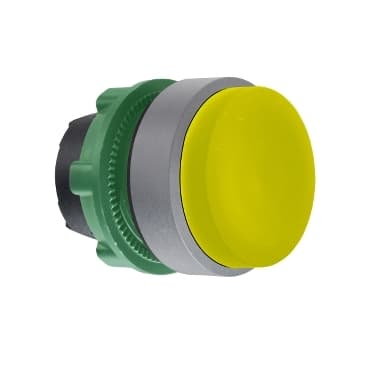

schneider ZB5AL5C0

Selling Points

  • 1High Durability: Designed to withstand 10 million cycles.
  • 2Easy Installation: Simple mounting with clip-together components.
  • 3Robust Design: IP66 and IP67 protection against dust and water.
  • 4Versatile Mounting: Compatible with single and double front mounting options.
  • 5Industrial-Grade: Meets standards for UL 508, IEC 60947-5-1, and JIS C8201-5-1.
Product Details
ZB5AL5C0
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB5
Bezel material
Plastic colour plated grey
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Yellow projecting, unmarked
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.042 lb(US) (0.019 kg)
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
