schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AL9312

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25625

In Stock
Last updated: 2025/4/27
View Specifications

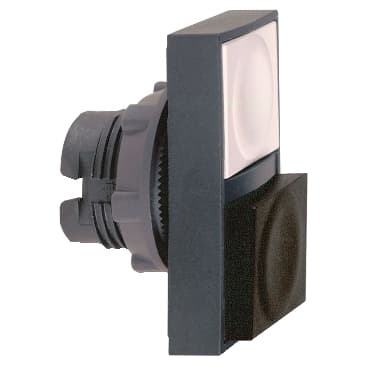

schneider ZB5AL9312

Selling Points

  • 1Made from durable plastic for long-lasting performance.
  • 2Ensures smooth and consistent operation.
  • 3Meets rigorous standards for electrical shock protection and durability.
  • 4Operates effectively from -40°C to +70°C.
  • 5Compatible with various industrial control systems and configurations.
Product Details
ZB5AL9312
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for double-headed push-button
Device short name
ZB5
Bezel material
Plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
White flush, unmarked<br />Black projecting, unmarked
Operators description
White unmarked - black unmarked
CAD overall width
1.2 in (30 mm)
CAD overall height
2.0 in (50 mm)
CAD overall depth
1.4 in (35 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Colour of marking
White marking when green, red or black caps<br />Black marking when white caps
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
BV<br />GL<br />CSA<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping)
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
