Product Model

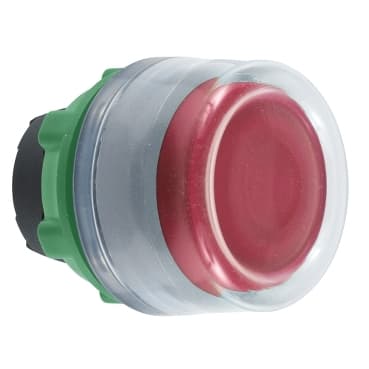

ZB5APA4C0
Selling Points
- 1High Durability: Withstands 10 million cycles of mechanical durability.
- 2Hygiene Compliance: Clear silicone boot ensures easy cleaning and hygiene compliance.
- 3IP66 Protection: Impact, dust, water, and vibration resistant for harsh environments.
- 4Easy Installation: Snap-fit assembly for quick installation on compatible units.
- 5Comprehensive Certifications: Certified by BV, CSA, DNV, GL, UL Listed, and LROS.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB5 | Product Compatibility | Not compatible with legend holder |
Bezel material | Plastic colour plated grey | Mounting diameter | 0.9 in (22 mm) |
Head type | Standard | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Red flush, unmarked | Operator additional information | Clear boot |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
CAD overall depth | 1.5 in (37 mm) | Mechanical durability | 10000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | IEC 60947-5-1<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
