ZB5AS42

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25679

In Stock
Last updated: 2025/4/27
View Specifications
schneider ZB5AS42

Selling Points

  • 1Ergonomically designed for easy operation.
  • 2Robust and suitable for most industrial applications.
  • 3Compact but prominent design with a 22mm cutout.
  • 4Latching mechanism with a non-illuminated standard turn to release.
  • 5Conforms to IEC, UL, and CSA standards for reliability and safety.
Product Details

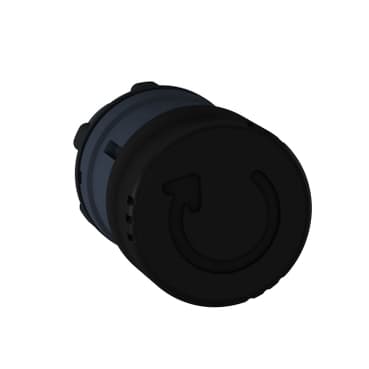

ZB5AS42
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB5
Bezel material
Dark grey plastic
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
latching
Reset
Turn to release
Operator profile
Black mushroom Ø 30 mm, unmarked
Device presentation
Basic element
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
2.2 in (57 mm)
Net Weight
0.09 lb(US) (0.04 kg)
Mechanical durability
500000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Electrical composition code
C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting
Compatibility code
ZB5
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
UL 508<br />JIS C8201-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
