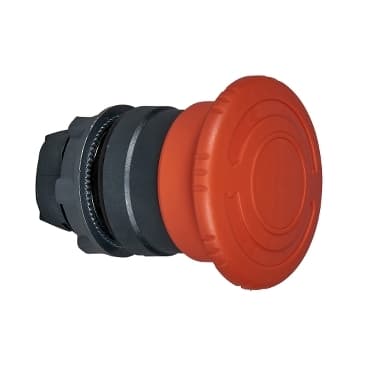

Product Model
ZB5AS54
Selling Points
- 1Red mushroom-shaped operator with Ø40 mm diameter for easy identification.
- 2Mechanical latching turn release ensures secure operation.
- 3IP66 and NEMA 4X protection against dust and water.
- 4High-pressure washer resistance up to 7,000,000 Pa at 55°C.
- 5Compliant with IEC 60536, UL 508, and CSA C22-2 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head |
Product destination | Emergency stop push-button | Device short name | ZB5 |
Bezel material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | mechanical latching |
Reset | Turn to release | Operator profile | Red mushroom Ø 40 mm, unmarked |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
CAD overall depth | 2.2 in (57 mm) | Net Weight | 0.097 lb(US) (0.044 kg) |
Mechanical durability | 300000 cycles | Station name | XALD 1 cut-out<br />XALK 1 cut-out |
Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C10 4 single and double front mounting | compatibility code | ZB5 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />UL 508<br />GB 14048.5<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60364-5-53<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | CSA<br />BV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />DNV<br />GL |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
