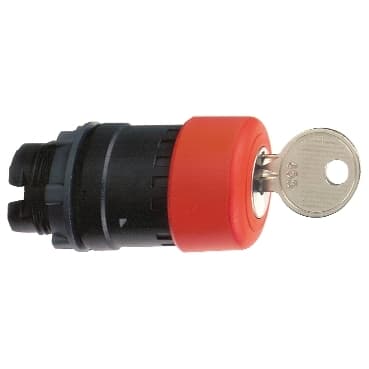

schneider ZB5AS74

Selling Points

  • 1Mechanical Latching: Ensures secure operation with a mechanical latching mechanism.
  • 2High Durability: Withstands up to 300,000 cycles, providing long-lasting performance.
  • 3IP66 Protection: Offers excellent protection against dust and water, ensuring reliable operation in harsh environments.
  • 4Easy Installation: Compatible with various mounting options, including screw clamp terminals and plug-in connectors.
  • 5Compliance with Standards: Meets Class II overvoltage category and NEMA 13/NEMA 4X protection standards for added safety and reliability.
Product Details
ZB5AS74
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head
Product destination
Emergency stop push-button
Device short name
ZB5
Bezel material
Plastic
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
mechanical latching
Reset
Key release
Operator profile
Red mushroom Ø 30 mm, unmarked
Type of Keylock
Key 455
Key withdrawal position
Center
Device presentation
Basic element
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
3.1 in (79 mm)
Net Weight
0.09 lb(US) (0.04 kg)
Mechanical durability
300000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 1...5 cut-outs
Electrical composition code
C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C10 4 single and double front mounting
compatibility code
ZB5
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />UL 508<br />GB 14048.5<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />IEC 60364-5-53<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications
UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />DNV<br />CSA<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
