Product Model

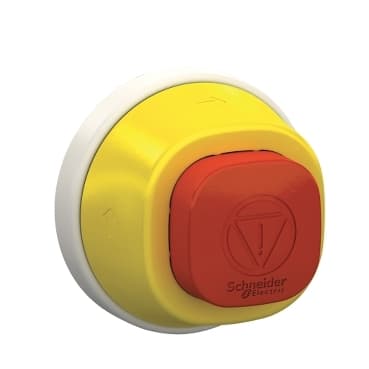

ZB5AS84W2M
Selling Points
- 1LED illumination ensures the button is clearly visible in any environment.
- 2Impact, dust, water, and vibration resistant with IP66, IP67, and IP69K ratings.
- 3Reduces the growth of microorganisms on the surface.
- 4Trigger action with mechanical latching for smooth operation and reset.
- 5Fits standard 22mm diameter cut-outs, compatible with contact blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated emergency stop push-button |
Device short name | ZB5 | Bezel material | Plastic |
Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | trigger action and mechanical latching | Reset | Turn to release |
Operator profile | Red square 32 mm | Device presentation | Basic element |
CAD overall width | 2.4 in (60 mm) | CAD overall height | 2.4 in (60 mm) |
CAD overall depth | 1.6 in (40 mm) | Net Weight | 0.139 lb(US) (0.063 kg) |
Electrical insulation class | Class II IEC 61140 | Resistance to electrostatic discharge | 4 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
[Us] rated supply voltage | 230 V | Supply voltage limits | 195…264 V AC |
Mechanical durability | 300000 cycles | Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C10 4 single and double front mounting |
Light source colour | Red | Product Compatibility | ZB5 |
[Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | compatibility code | ZB5 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50E<br />Type 12 UL 50E<br />Type 4 UL 50E<br />Type 4X UL 50E |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK05 conforming to IEC 50102 | Standards | IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />ISO 21702<br />ISO 22196:2011 |
Product Certifications | UL Listed<br />CSA<br />EAC | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
