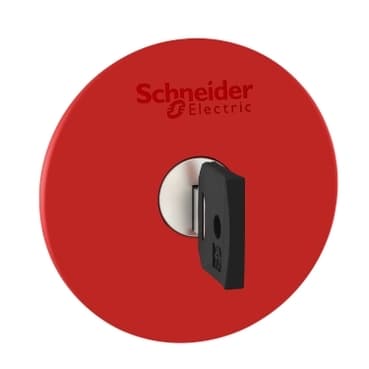

schneider ZB5AS964

Selling Points

  • 1The ZB5AS964 is designed to withstand dust, water, and vibrations, making it perfect for operation in harsh conditions.
  • 2The 60mm mushroom red button provides an ergonomic interface for easy control of machines.
  • 3Equipped with a trigger/latching key release mechanism (key no. 455) for secure operation.
  • 4Easily installable on compatible emergency stop and switching off push buttons.
  • 5Meets standards such as EN/ISO 13850, IEC 60364-5-53, and UL 508 for safety and reliability.
Product Details
ZB5AS964
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for emergency stop push-button
Product destination
Emergency stop push-button
Device short name
ZB5
Bezel material
Dark grey plastic
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
trigger action and mechanical latching
Reset
Key release
Operator profile
Red mushroom Ø 60 mm, unmarked
Type of Keylock
Key 455
Key withdrawal position
Center
Device presentation
Basic element
CAD overall width
2.4 in (60 mm)
CAD overall height
2.4 in (60 mm)
CAD overall depth
3.1 in (79 mm)
Net Weight
0.203 lb(US) (0.092 kg)
Mechanical durability
300000 cycles
Station name
XALD 1 cut-out<br />XALK 1 cut-out
Electrical composition code
C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C10 4 single and double front mounting
compatibility code
ZB5
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
ISO 13850<br />IEC 60364-5-53<br />IEC 60947-5-1<br />IEC 60947-5-5<br />UL 508<br />IEC 60204-1<br />GB 14048.5<br />IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />JIS C8201-1
Product Certifications
CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
