schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AV033TQ

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25843

In Stock
Last updated: 2025/4/26
View Specifications

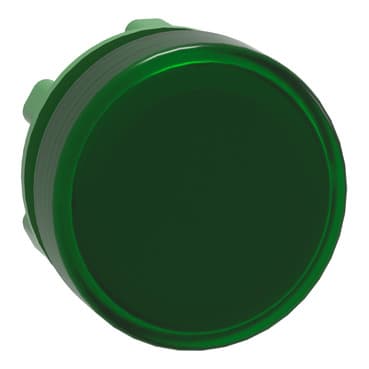

schneider ZB5AV033TQ

Selling Points

  • 1Universal LED Design: Compatible with various holders like ZBV6, ZBVB, ZBVG, ZBVM.
  • 2Robust Construction: Built to withstand harsh environments with an IP66 rating.
  • 3Easy Assembly: Quick and simple installation process.
  • 4Versatile Mounting: Available in a 22mm mounting diameter for universal application.
  • 5Green Illumination: Provides clear visibility with green LED lighting.
Product Details
ZB5AV033TQ
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for pilot light
Product Compatibility
Integral LED
Device short name
ZB5
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
100
Shape of signaling unit head
Round
cap/operator or lens colour
Green
Operator additional information
With plain lens
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (31 mm)
Electrical composition code
P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED<br />PR1 rear mounting integral LED
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
Standards
EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
