Product Model
ZB5AV043TQ
Selling Points
- 1Operates in a wide temperature range (-40-70°C) for both operation and storage.

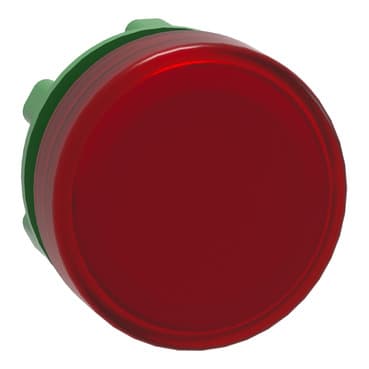

- 2Features a dark grey plastic bezel with a round shape and red cap/operator lens.
- 3Offers IP66 and IP67 protection against dust and water, ensuring durability in harsh environments.
- 4Compliant with EU RoHS and China RoHS regulations, ensuring environmental safety.
- 5Backed by an 18-month warranty for added peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for pilot light |
Product Compatibility | Integral LED | Device short name | ZB5 |
Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
Head type | Standard | Sale per indivisible quantity | 100 |
Shape of signaling unit head | Round | cap/operator or lens colour | Red |
Operator additional information | With plain lens | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (31 mm) |
Electrical composition code | P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED<br />PR1 rear mounting integral LED | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK05 conforming to IEC 50102 | Standards | IEC 60947-5-4<br />IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-1<br />UL 508<br />IEC 60947-5-1<br />JIS C8201-1 |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
