Product Model

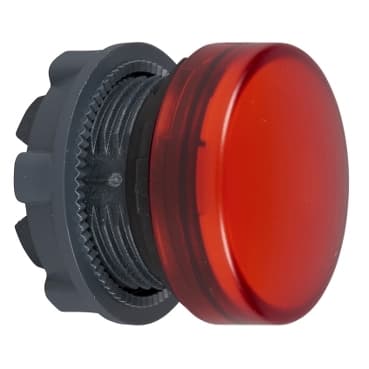

ZB5AV04TQ
Selling Points
- 1Built to withstand harsh environments.
- 2Quick and easy disassembly for maintenance.
- 3Compatible with screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 4Made from dark grey plastic with a red plain lens.
- 5Made with recycled cardboard packaging and part of Schneider Electric's "Use Better, Use Longer, Use Again" campaign.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for pilot light |
Product Compatibility | BA 9s | Device short name | ZB5 |
Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
Head type | Standard | Sale per indivisible quantity | 100 |
Shape of signaling unit head | Round | cap/operator or lens colour | Red |
Operator additional information | With plain lens | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (31 mm) |
Electrical composition code | P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer<br />PF2 front mounting BA 9s | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
IK degree of protection | IK05 conforming to IEC 50102 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
