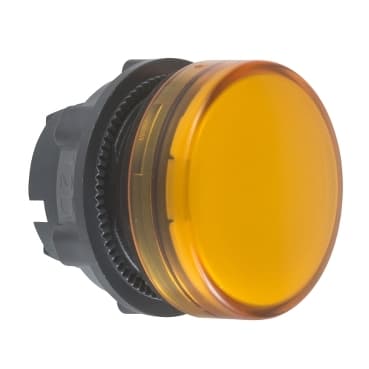

Schneider Electric ZB5AV05TQ Pilot Light Head

Selling Points

1The ZB5AV05TQ offers bright and reliable illumination with a plain lens, ensuring clear visibility in any environment.
2Constructed from dark grey plastic with a round shape, this pilot light head is built to withstand harsh conditions.
3Compliant with NEMA 13 and IP69K standards, providing excellent resistance to high-pressure washers and harsh environments.
4Designed with a mounting diameter of 0.87 inches (22 mm), making it easy to integrate into various systems.
5Meets stringent safety standards, ensuring reliability and safety in your applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XB5	Product or Component Type	Head for pilot light
Product Compatibility	BA 9s	Device short name	ZB5
Bezel material	Dark grey plastic	Mounting diameter	0.9 in (22 mm)
Head type	Standard	Sale per indivisible quantity	100
Shape of signaling unit head	Round	cap/operator or lens colour	Yellow
Operator additional information	With plain lens	CAD overall width	1.1 in (29 mm)
CAD overall height	1.1 in (29 mm)	CAD overall depth	1.2 in (31 mm)
Electrical composition code	P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer<br />PF2 front mounting BA 9s	Protective treatment	TH
Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)	Ambient Air Temperature for Operation	-40…158 °F (-40…70 °C)
Overvoltage category	Class II IEC 60536	IP degree of protection	IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653
NEMA degree of protection	NEMA 13<br />NEMA 4X	Resistance to high pressure washer	1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection	IK05 conforming to IEC 50102	Vibration resistance	5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
