Product Model

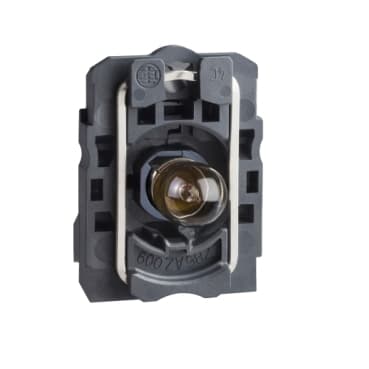

ZB5AV624
Selling Points
- 1Protected LED light source with integral LED bulb base.
- 2Environmental condition TH protective treatment, -40 to 70°C storage or operating temperature.
- 318 mA current consumption for energy efficiency.
- 45 gn vibration resistance conforming to IEC 60068-2-6 for durability.
- 5Compact dimensions: 1.93 in H x 1.18 in W x 1.26 in D.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Complete body/light block assembly |
Device short name | ZB5 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
Light source | Incandescent bulb | Bulb base | BA 9s |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (49 mm) |
CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (X1-X2)PL |
[Ui] rated insulation voltage | 250 V 3)EN 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 |
Signalling type | Steady | [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
Supply voltage limits | 19.2…30 V DC<br />21.6…26.4 V AC | current consumption | 18 mA |
Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 60536 |
Standards | UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-2-6<br />8 kV in free air (in insulating parts) IEC 61000-2-6 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
