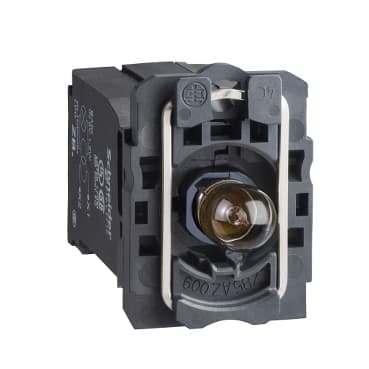

Product Model
ZB5AV8
Selling Points
- 1Easy Installation: Fast and simple replacement of signaling units.
- 2High-Performance Illumination: Powered by an incandescent bulb base BA9s.
- 3Durable Construction: Made from high-quality plastic with a rated insulation voltage of 600 V.
- 4Versatile Mounting: Suitable for front mounting with screw clamp terminals.
- 5Compliance with Standards: Meets EN 60947-1 and other international electrical standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Complete body/light block assembly |
Device short name | ZB5 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
Light source | Incandescent | Bulb base | BA 9s |
Light block supply | Via integral transformer 1.2 VA 6 V | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.7 in (42 mm) | CAD overall depth | 2.2 in (55 mm) |
Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.218 lb(US) (0.099 kg) |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
Signalling type | Steady | [Us] rated supply voltage | 440...480 V AC 50/60 Hz |
Mounting of block | Front mounting | Electrical composition code | P4<br />M9 |
Device presentation | Basic sub-assemblies | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Electrical shock protection class | Class II IEC 60536 | Standards | IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
