Product Model

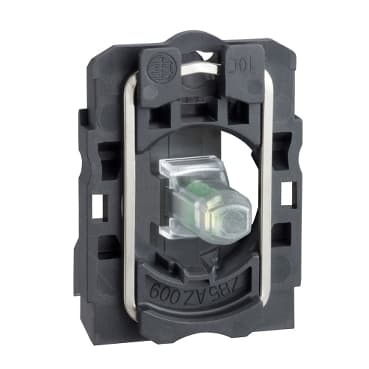

ZB5AVM3
Selling Points
- 1The plastic bezel provides excellent resistance to chemical agents and electrical insulation, making it suitable for various industrial applications.
- 2The light features a simple modular design that facilitates easy post-installation servicing, modification, and adaptation of machines by non-specialists.
- 3Designed to fit in a standard 22mm cut-out, ensuring compatibility with pre-existing machinery and easy integration into existing systems.
- 4Operates effectively within a wide range of temperatures from -40 to +70 °C (-40 to +158 °F), making it versatile for different environments.
- 5Meets international standards for high performance, ensuring reliability and consistency in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Complete body/light block assembly |
Device short name | ZB5 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
Light source | Protected LED | Bulb base | Integral LED |
Light source colour | Green | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.7 in (42 mm) | CAD overall depth | 1.3 in (32 mm) |
Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.049 lb(US) (0.022 kg) |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
Signalling type | Steady | [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
Supply voltage limits | 195…264 V AC | current consumption | 14 mA |
Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
Device presentation | Basic sub-assemblies | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class II IEC 60536 | Standards | IEC 60947-5-4<br />IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | UL Listed<br />DNV<br />LROS (Lloyds register of shipping)<br />GL<br />BV<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-2-6<br />8 kV in free air (in insulating parts) IEC 61000-2-6 |
Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
