Product Model

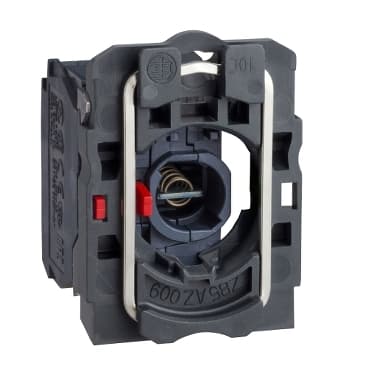

ZB5AW062
Selling Points
- 1Comprehensive Contact & Light Block Assembly: Includes a complete body/contact assembly and light block with integral LED illumination.
- 2High Electrical Reliability: Meets stringent standards with electrical reliability of less than 10^-6 at 5V and less than 10^-8 at 17V.
- 3Versatile Voltage Rating: Operates within a wide voltage range of 110-120V AC, ensuring compatibility with various applications.
- 4Robust Terminal Connections: Equipped with screw clamp terminals and compatible with plug-in connectors or printed circuit boards.
- 5Compliance with Global Standards: Meets UL, CSA, and IEC standards for safety and reliability, ensuring broad market acceptance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly and light block |
Device short name | ZB5 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Head type | Standard |
Contacts type and composition | 1 NC | Contact operation | Slow-break |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 | Light source | Bulb not included |
Bulb base | BA 9s | Light block supply | Direct <2.4 W |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (11-12)NC |
Net Weight | 0.068 lb(US) (0.031 kg) | Contacts usage | Standard |
Positive opening | With IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Operating force | 2 N NC changing electrical state | Mechanical durability | 5000000 cycles |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
[Ith] conventional free air thermal current | 10 A IEC 60947-5-1 | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
Signalling type | Steady | [Us] rated supply voltage | <= 250 V |
Device presentation | Basic sub-assemblies | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class II IEC 60536 | Standards | UL 508<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
