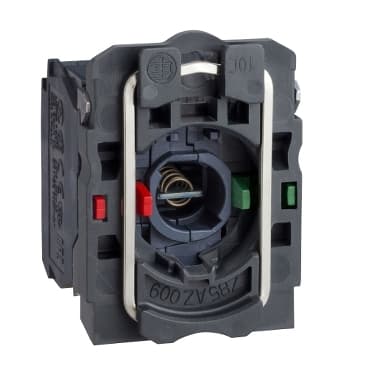

Product Model
ZB5AW065
Selling Points
- 1Fast and Easy Installation: Quickly replace and configure signaling units with simple screw-clamp connections.
- 2Robust Design: Withstands harsh environments and protects operators from unexpected contact with live circuits (IP20 protection).
- 3Technical Specifications: Compatible with Harmony XB5 pilot lights, 250VAC, 22mm diameter, and BA9S incandescent lamp.
- 4Versatile Connections: Supports various connection types including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 5High-Quality Materials: Made from durable plastic with a clear finish, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly and light block |
Device short name | ZB5 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Head type | Standard |
Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 | Light source | Bulb not included |
Bulb base | BA 9s | Light block supply | Direct <2.4 W |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (13-14)NO<br />(11-12)NC |
Net Weight | 0.090 lb(US) (0.041 kg) | Contacts usage | Standard |
Positive opening | With IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Operating force | 2 N NC changing electrical state<br />2.3 N NO changing electrical state | Operating torque | 0.44 lbf.in (0.05 N.m) NO changing electrical state |
Mechanical durability | 5000000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
[Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 | Signalling type | Steady |
[Us] rated supply voltage | <= 250 V | Device presentation | Basic sub-assemblies |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 60536 |
Standards | UL 508<br />JIS C8201-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
