Product Model

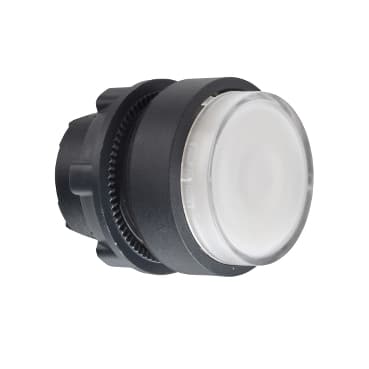

ZB5AW113S
Selling Points
- 1Illuminated Projecting Spring Return Standard for clear visibility.
- 2Durable construction with high resistance to high-pressure washers (1015.26 psi).
- 3Compact size with a 22 mm diameter, suitable for various panel cut-outs.
- 4Unmarked design for universal use in control and signaling applications.
- 5Meets IP66 and IP69K protection standards for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | Integral LED |
Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | White projecting, unmarked |
Operator additional information | With grooved lens | Environmental characteristic | High ambient lighting environment |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.3 in (33 mm) | Net Weight | 0.037 lb(US) (0.017 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Main group | Illum push-button | Group of product | Proj push with inser of legend |
Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Cap/operator or lens colour | White |
Marking | Unmarked | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED |
Device presentation | Basic sub-assemblies | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to EN 50102 |
Product Certifications | UL Listed<br />BV<br />LROS (Lloyds register of shipping)<br />DNV<br />GL<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
