Product Model

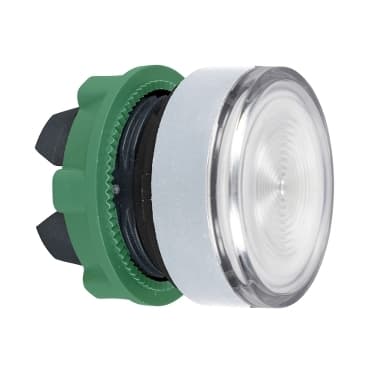

ZB5AW31SC1
Selling Points
- 1High-quality illuminated pushbutton head with a white flush design.
- 2Spring return mechanism for reliable operation.
- 3Robust construction with a dark grey plastic bezel.
- 4Compatible with BA9s bulb for efficient lighting.
- 5Meets IP69, IP67, and IP66 protection standards for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | BA 9s |
Bezel material | Plastic colour plated white | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | White flush, unmarked | Operator additional information | With grooved lens |
Environmental characteristic | High ambient lighting environment | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.040 lb(US) (0.018 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 10000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
Cap/operator or lens colour | White | Marking | Unmarked |
Electrical composition code | M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer<br />MF2 2 single front mounting BA 9s | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to EN 50102 |
Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />GB 14048.5<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />DNV<br />BV<br />CSA<br />GL<br />LROS (Lloyds register of shipping) |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
