Product Model

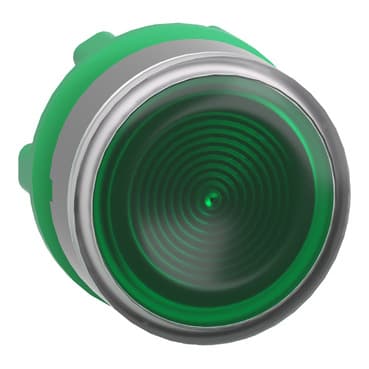

ZB5AW333SC0
Selling Points
- 1Universal LED Compatibility: Works seamlessly with universal LED blocks.
- 2Durable Design: Resistant to high pressure washers up to 1015.3 psi.
- 3Ergonomic Design: Green flush and grooved lens for improved aesthetics.
- 4High Ambient Lighting: Suitable for high ambient lighting environments.
- 5Mechanical Durability: Withstands 10,000,000 cycles of mechanical durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | Universal LED |
Bezel material | Plastic colour plated grey | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Green flush, unmarked | Operator additional information | With grooved lens |
Environmental characteristic | High ambient lighting environment | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (30 mm) |
Net Weight | 0.037 lb(US) (0.017 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 10000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
Cap/operator or lens colour | Green | Marking | Unmarked |
Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED | Device presentation | Basic sub-assemblies |
Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK05 conforming to IEC 62262 | Standards | UL 508<br />IEC 60947-1<br />IEC 60947-5-4<br />IEC 60947-5-1<br />JIS C8201-5-1<br />GB 14048.5<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
