ZB5AW343SC0

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26140

In Stock
Last updated: 2025/4/24
View Specifications

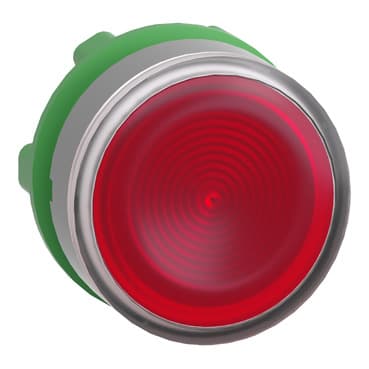

schneider ZB5AW343SC0

Selling Points

  • 1High Durability: Withstands 10 million cycles of mechanical durability, ensuring long-lasting performance.
  • 2IP66 Rating: Resistant to impact, dust, water, and vibration, making it perfect for harsh environments.
  • 3Easy Installation: Snap-fit assembly for easy installation and replacement on compatible units.
  • 4Clear Visibility: Clearly distinguishable visually at a distance due to its illuminated clear color and flush element.
  • 5Versatile Interface: Provides a versatile interface for controlling machines with universal LED compatibility.
Product Details
ZB5AW343SC0
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Plastic colour plated grey
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red flush, unmarked
Operator additional information
With grooved lens
Environmental characteristic
High ambient lighting environment
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.037 lb(US) (0.017 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Cap/operator or lens colour
Red
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to IEC 62262
Standards
IEC 60947-1<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-5-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />GB 14048.5<br />JIS C8201-1
Product Certifications
CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
