schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AW513

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26172

In Stock
Last updated: 2025/4/24
View Specifications

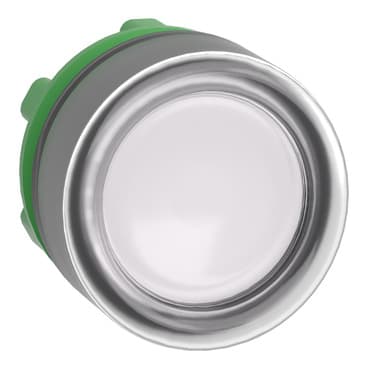

schneider ZB5AW513

Selling Points

  • 1Robust and Durable Design: Built to withstand harsh environments with an IP66/67 rating.
  • 2Easy Installation: Quick and easy assembly and disassembly for convenient use.
  • 3Versatile Connectivity: Compatible with various connection types including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
  • 4Energy Efficiency: Universal LED illumination for energy-efficient operation.
  • 5Sustainable Packaging: Made with recycled cardboard packaging to reduce carbon footprint.
Product Details
ZB5AW513
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
White flush, unmarked
Operator additional information
Clear boot
CAD overall width
1.2 in (30 mm)
CAD overall height
1.2 in (30 mm)
CAD overall depth
1.5 in (37 mm)
Net Weight
0.042 lb(US) (0.019 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Cap/operator or lens colour
White
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to IEC 62262
Standards
UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />GB 14048.5<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
