Product Model

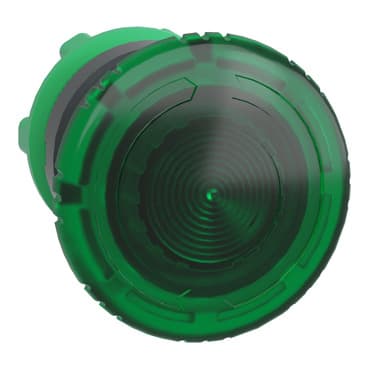

ZB5AW733
Selling Points
- 1Illuminated Mushroom Pushbutton Head with Green Mushroom Operator Profile.
- 2Latching Operator for Reliable Switching.
- 3IP69K Degree of Protection for Harsh Environments.
- 4Operating Temperature Range: -40°C to 158°C.
- 5High Mechanical Durability with 300,000 Cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | Universal LED |
Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | latching |
Reset | Turn to release | Operator profile | Green mushroom Ø 40 mm, unmarked |
CAD overall width | 1.6 in (40 mm) | CAD overall height | 1.6 in (40 mm) |
CAD overall depth | 2.0 in (50 mm) | Net Weight | 0.049 lb(US) (0.022 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 300000 cycles |
Main group | Mushroom head | Group of product | Mush. turn to release illum |
Station name | XALD 1 cut-out<br />XALK 1 cut-out | Cap/operator or lens colour | Green |
Marking | Unmarked | Electrical composition code | M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED<br />M3 4 single front mounting integral LED<br />M4 4 single and double front mounting integral LED |
Device presentation | Basic sub-assemblies | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 62262 |
Standards | IEC 60947-1<br />GB 14048.5<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />JIS C8201-5-1<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
