Product Model

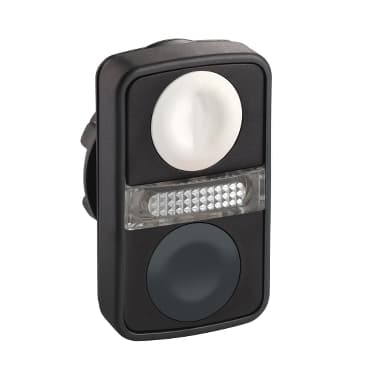

ZB5AW7A1720
Selling Points
- 1Illuminated Double-Headed Push Buttons: Includes 1 white and 1 black button with a central white pilot light.
- 2Spring Return Mechanism: Operates with a spring return/impulse mechanism for reliable operation.
- 322mm Size: Compact design with a rectangular shape, perfect for various control panels.
- 4Black/White Color Scheme: Durable plastic bezel available in black and white.
- 5Versatile Control Interface: Suitable for a wide range of control and signaling applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED | Device short name | ZB5 |
Bezel material | Dark grey plastic | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular | Type of operator | spring return |
Operator profile | Black flush, unmarked<br />White flush, unmarked | Operators description | White unmarked - black unmarked |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
Mechanical durability | 1000000 cycles | Station name | XALD 1 cut-out |
Device presentation | Basic sub-assemblies | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
IP degree of protection | IP66<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
