Product Model

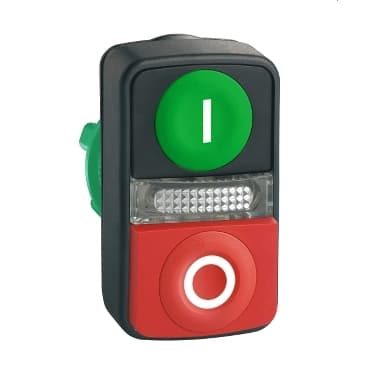

ZB5AW7L3741
Selling Points
- 1Made from high-quality plastic with a NEMA 13/14X/IP69/66/69K enclosure for excellent resistance to chemicals and electrical insulation.
- 2Features a simple modular design for easy post-installation servicing and modification.
- 3Operates within a wide temperature range of -25 to 70°C and stores within -40 to 70°C.
- 4Equipped with an LED lamp for clear visibility in various environments.
- 5Includes a spring return operator for reliable and consistent operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED | Device short name | ZB5 |
Bezel material | Dark grey plastic | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular | Type of operator | spring return |
Operator profile | Green flush, I white)<br />Red projecting, O white) | Operators description | Green ''I'' - red ''O'' |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
CAD overall depth | 1.4 in (35 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
Mechanical durability | 1000000 cycles | Station name | XALD 1 cut-out |
Device presentation | Basic sub-assemblies | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
IP degree of protection | IP66<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | IEC 60947-5-4<br />JIS C8201-5-1<br />IEC 60947-1<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
