Product Model

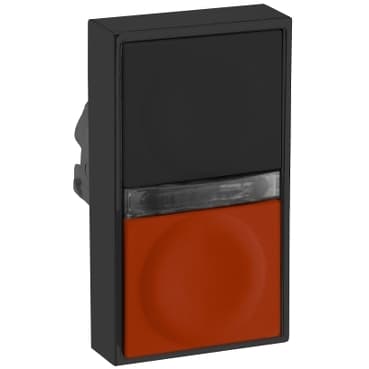

ZB5AW812743
Selling Points
- 1With a mechanical durability of 1,000,000 operations at no load, this pushbutton ensures long-lasting performance.
- 2Features one flush black, one flush red, and one clear central pilot light for versatile illumination.
- 3Offers robust protection against dust and water, making it suitable for demanding environments.
- 4Designed for spring-return (impulse/momentary) operation, providing quick and reliable activation.
- 5Measures 22 mm in diameter, 47 mm in height, 32 mm in depth, and 28 mm in width for easy integration into automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED | Device short name | ZB5 |
Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Black flush, unmarked<br />Red flush, unmarked |
Operators description | Black unmarked - red unmarked | CAD overall width | 1.1 in (28 mm) |
CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.049 lb(US) (0.022 kg) | Mechanical durability | 1000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
IP degree of protection | IP40 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />DNV<br />GL<br />BV<br />UL Listed<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
