schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AW822743

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25968

In Stock
Last updated: 2025/4/26
View Specifications

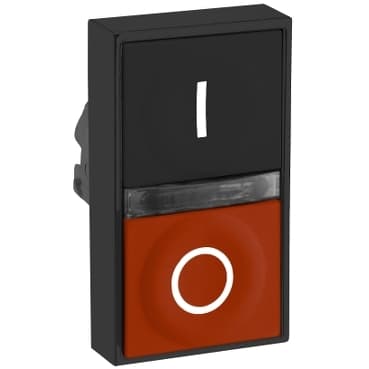

schneider ZB5AW822743

Selling Points

  • 1Illuminated design with black and red flush options for clear visibility in various environments.
  • 2Constructed with high-quality materials for long-lasting performance and resistance to shock and vibration.
  • 3Compatible with BA9s bulbs, ensuring smooth integration into existing systems.
  • 4Conforms to IEC 60068-2-6 and IEC 60536 standards for electric shock protection and mechanical durability.
  • 5Available in Ø22 mm size, suitable for various mounting positions and applications.
Product Details
ZB5AW822743
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB5
Bezel material
Plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Red flush, O white)<br />Black flush, I white)
Operators description
Black ''I'' - red ''O''
CAD overall width
1.1 in (28 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.3 in (32 mm)
Net Weight
0.049 lb(US) (0.022 kg)
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP40
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
Standards
EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1
Product Certifications
UL Listed<br />LROS (Lloyds register of shipping)<br />GL<br />BV<br />DNV<br />CSA
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
