Product Model

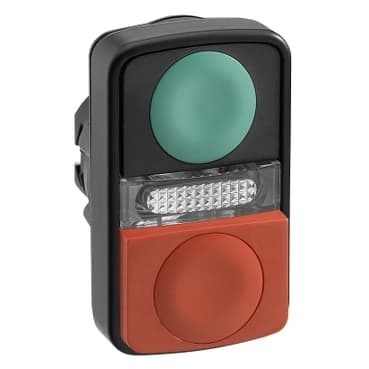

ZB5AW833743
Selling Points
- 1Features green and red buttons for clear visual indication.
- 2Built with durable materials for long-lasting performance.
- 3Easy to integrate into various control panels and systems.
- 4Illuminated buttons ensure clear visibility in any environment.
- 5Designed to withstand harsh industrial conditions with minimal maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
Product Compatibility | Integral LED | Device short name | ZB5 |
Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Green flush, unmarked<br />Red projecting, unmarked |
Operators description | Green unmarked - red unmarked | CAD overall width | 1.1 in (28 mm) |
CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
Net Weight | 0.046 lb(US) (0.021 kg) | Mechanical durability | 1000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
IP degree of protection | IP40 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | UL 508<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />LROS (Lloyds register of shipping)<br />DNV<br />GL<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
