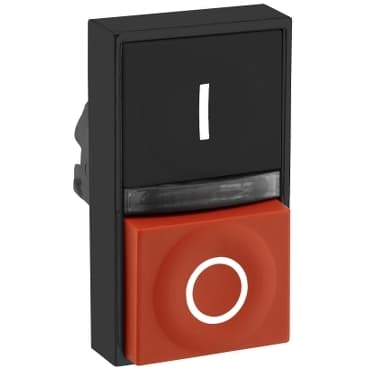

schneider ZB5AW842743

Selling Points

  • 1Enhanced Visibility: Illuminated design with black and red buttons for clear visibility in various environments.
  • 2Durable Construction: Built to withstand harsh industrial conditions, ensuring long-lasting performance.
  • 3Easy Installation: Simple and quick installation process, minimizing downtime and effort.
  • 4Versatile Applications: Suitable for a wide range of industrial settings, including control panels and machinery.
  • 5Reliable Operation: Designed with robust materials and mechanisms for consistent operation over time.
Product Details
ZB5AW842743
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB5
Bezel material
Plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Red projecting, O white)<br />Black flush, I white)
Operators description
Black ''I'' - red ''O''
CAD overall width
1.1 in (28 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.3 in (32 mm)
Net Weight
0.046 lb(US) (0.021 kg)
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP40
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
Standards
CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
BV<br />DNV<br />CSA<br />LROS (Lloyds register of shipping)<br />GL<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
