schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AW943

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26098

In Stock
Last updated: 2025/4/25
View Specifications

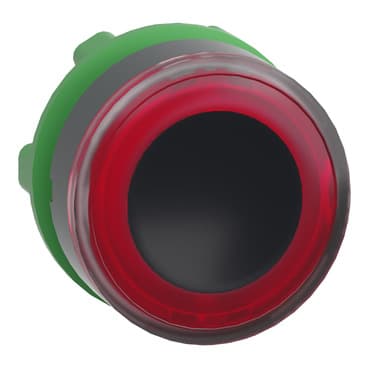

schneider ZB5AW943

Selling Points

  • 1Red Flush Design: The ZB5AW943 boasts a distinctive red flush design for clear visibility in various environments.
  • 2Integral LED Illumination: Equipped with an integral LED, this pushbutton head provides consistent and reliable illumination.
  • 3Spring Return Mechanism: Features a spring return mechanism for easy operation and consistent performance.
  • 4Durable Construction: Made from dark grey plastic, ensuring durability and resistance to high-pressure washers.
  • 5IP67 Protection: Offers IP67 protection, making it suitable for harsh industrial environments.
Product Details
ZB5AW943
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Red flush, unmarked
Operator additional information
With illuminated ring
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Cap/operator or lens colour
Red
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to EN 50102
Standards
JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />GB 14048.5<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
BV<br />CSA<br />DNV<br />GL<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
