schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AW953

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26099

In Stock
Last updated: 2025/4/25
View Specifications

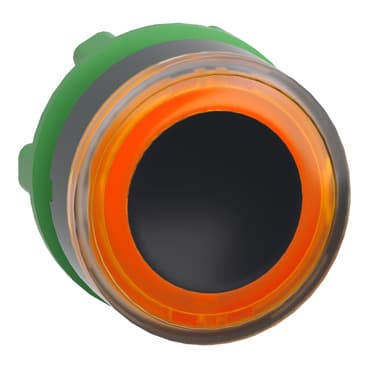

schneider ZB5AW953

Selling Points

  • 1High-quality illumination: The ZB5AW953 features an integral LED for clear visual signaling.
  • 2Durable design: Built with dark grey plastic, it offers resistance to high pressure washers and mechanical durability up to 10 million cycles.
  • 3Easy installation: Quick and simple to install with a clip-together component system and snap-fit assembly method.
  • 4Versatile compatibility: Compatible with various electrical compositions (M1, M2, M6) and suitable for different mounting configurations.
  • 5Ergonomic aesthetics: Enhances the look and feel of control panels with its flush-mounting solution, addressing ergonomic design and aesthetics demands.
Product Details
ZB5AW953
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Orange flush, unmarked
Operator additional information
With illuminated ring
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Station name
XALD 1...5 cut-outs<br />XALK 2...5 cut-outs
Cap/operator or lens colour
Orange
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK05 conforming to EN 50102
Standards
EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />GB 14048.5<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications
CSA<br />GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
