schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AX84

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26111

In Stock
Last updated: 2025/4/25
View Specifications

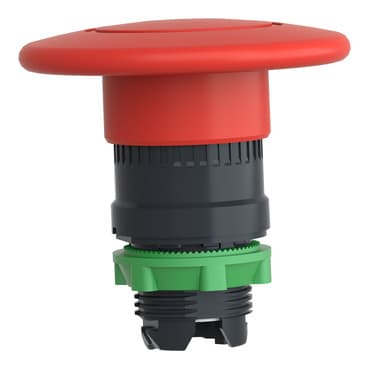

schneider ZB5AX84

Selling Points

  • 1Emergency Stop Function: Designed for critical applications, this pushbutton head includes an emergency stop function.
  • 2Mushroom Push-Pull Standard Trigger: Features a 22 mm size, round shape, and red color for easy identification.
  • 3Mechanical Latching Unmarked: Provides reliable and secure operation without visible markings.
  • 4IP66 Rating: Ensures durability and resistance to dust and water.
  • 5Modular Harmony XB5 Series Compatibility: Part of the Harmony XB5 series, offering flexibility and modern design for industrial applications.
Product Details
ZB5AX84
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for emergency stop push-button
Product destination
Emergency stop push-button
Device short name
ZB5
Bezel material
Dark grey plastic
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
trigger action and mechanical latching
Reset
Push-pull
Operator profile
Red mushroom Ø 60 mm, unmarked
Device presentation
Basic element
CAD overall width
2.4 in (60 mm)
CAD overall height
2.4 in (60 mm)
CAD overall depth
2.2 in (56 mm)
Net Weight
0.11 lb(US) (0.05 kg)
Mechanical durability
300000 cycles
Station name
XALD 1 cut-out<br />XALK 1 cut-out
Electrical composition code
C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C10 4 single and double front mounting
compatibility code
ZB5
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
Standards
JIS C8201-5-1<br />IEC 60947-5-5<br />IEC 60364-5-53<br />IEC 60204-1<br />GB 14048.5<br />UL 508<br />IEC 60947-5-4<br />ISO 13850<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-1
Product Certifications
CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
