ZB5AZ1013

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26122

In Stock
Last updated: 2025/4/25
View Specifications

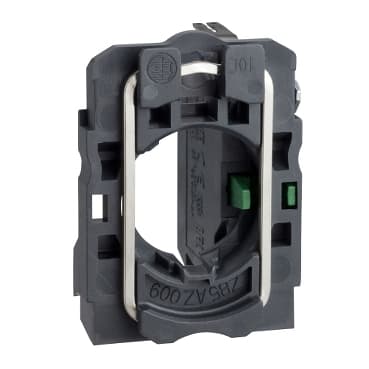

schneider ZB5AZ1013

Selling Points

  • 1High-Quality Construction: Made from durable ZB5 plastic, ensuring long-lasting performance.
  • 2Easy Installation: Quick connect connection for controlled operation, simplifying setup.
  • 3Technical Specifications: 250 V, 3EN 60947-1 compliant, with a 10A amperage rating.
  • 4Versatile Compatibility: Compatible with 600V voltage and 22 mm mounting base.
  • 5Reliable Performance: Designed for up to 10 million cycles without failure.
Product Details
ZB5AZ1013
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Complete body/contact assembly
Device short name
ZB5
Fixing collar material
Plastic
Sale per indivisible quantity
1
Head type
Standard
Contacts type and composition
1 NO
Contact operation
Slow-break
Contact block type
Single
Connections - terminals
Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm
CAD overall width
1.2 in (30 mm)
CAD overall height
1.7 in (42 mm)
CAD overall depth
1.3 in (32 mm)
Terminals description ISO n°1
(13-14)NO
Net Weight
0.046 lb(US) (0.021 kg)
Device Composition
Body<br />Fixing collar
Contacts usage
Standard contacts
Positive opening
Without
Operating travel
0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel)
Operating force
2.3 N NO changing electrical state
Mechanical durability
10000000 cycles
Contacts material
Silver alloy (Ag/Ni)
[Ui] rated insulation voltage
250 V 3)EN 60947-1
Electrical reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
LROS (Lloyds register of shipping)<br />CSA<br />UL<br />BV<br />GL<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
