Product Model

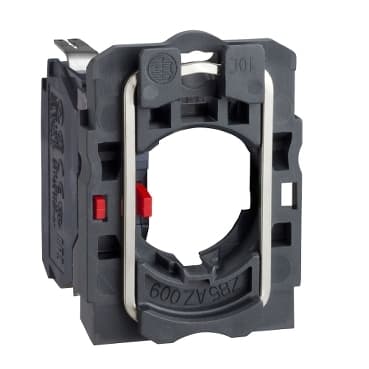

ZB5AZ1023
Selling Points
- 1High-Quality Contacts: Silver alloy contacts ensure reliable performance.
- 2Compact Design: Measures 30 mm W x 32 mm D x 42 mm H for easy installation.
- 3Faston Connectors: Compatible with 1 x 6.35 mm and 2 x 2.8 mm Faston connectors.
- 4Wide Operating Range: Operates in temperatures from -40°C to 70°C.
- 5Durable Construction: Plastic body with a fixing collar for long-lasting use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly |
Device short name | ZB5 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Head type | Standard |
Contacts type and composition | 1 NC | Contact operation | Slow-break |
Contact block type | Single | Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (11-12)NC |
Net Weight | 0.046 lb(US) (0.021 kg) | Device Composition | Body<br />Fixing collar |
Contacts usage | Standard contacts | Positive opening | With EN/IEC 60947-5-1 appendix K |
Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2 N NC changing electrical state |
Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
[Ui] rated insulation voltage | 250 V 3)EN 60947-1 | Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
Standards | CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 | Product Certifications | DNV<br />LROS (Lloyds register of shipping)<br />GL<br />UL<br />BV<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
