Product Model

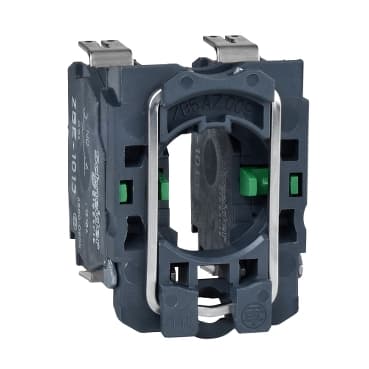

ZB5AZ1033
Selling Points
- 1Single contact block with body/fixing collar 2 NO faston connector.
- 2Compatible with push buttons or selector switches in the Harmony XB5 series.
- 3Operating temperature range: -25°C to 70°C.
- 4IP20 rating for reliable performance in various environments.
- 5Part of the Harmony XB5 range, ensuring compatibility and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly |
Device short name | ZB5 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Head type | Standard |
Contacts type and composition | 2 NO | Contact operation | Slow-break |
Contact block type | Single | Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (13-14)NO |
Device Composition | Fixing collar<br />Body | Contacts usage | Standard contacts |
Positive opening | Without | Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
[Ui] rated insulation voltage | 250 V 3)EN 60947-1 | Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
Standards | JIS C8201-5-1<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-1 | Product Certifications | GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV<br />UL<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
