Product Model

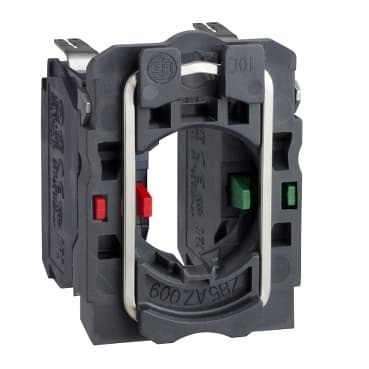

ZB5AZ1053
Selling Points
- 1High Reliability: Designed with silver alloy contacts for consistent performance and long-lasting durability.
- 2Versatile Applications: Suitable for various applications, including push buttons and selector switches, ensuring flexibility in control panel configurations.
- 3Robust Construction: Built with a plastic fixing collar and a single contact block, providing mechanical strength and resistance to environmental factors.
- 4Compliant Standards: Meets international standards such as CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, and EN/IEC 60947-1 for enhanced safety and reliability.
- 5Easy Installation: Features a faston connector for quick and secure connections, simplifying the installation process in control panels and machines.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly |
Device short name | ZB5 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Head type | Standard |
Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
Contact block type | Single | Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
CAD overall depth | 1.3 in (32 mm) | Terminals description ISO n°1 | (11-12)NC<br />(13-14)NO |
Device Composition | Body<br />Fixing collar | Contacts usage | Standard contacts |
Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
[Ui] rated insulation voltage | 250 V 3)EN 60947-1 | Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />UL<br />LROS (Lloyds register of shipping)<br />DNV<br />GL<br />BV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
